The Boeing AH-64 Apache is an American twin-turboshaft attack helicopter with a tailwheel-type landing gear arrangement and a tandem cockpit for a crew of two. It features a nose-mounted sensor suite for target acquisition and night vision systems. It is armed with a 30 mm (1.18 in) M230 chain gun carried between the main landing gear, under the aircraft's forward fuselage, and four hardpoints mounted on stub-wing pylons for carrying armament and stores, typically a mixture of AGM-114 Hellfire missiles and Hydra 70 rocket pods. The AH-64 has significant systems redundancy to improve combat survivability.

The Apache began as the Model 77 developed by Hughes Helicopters for the United States Army's Advanced Attack Helicopter program to replace the AH-1 Cobra. The prototype YAH-64 was first flown on 30 September 1975. The U.S. Army selected the YAH-64 over the Bell YAH-63 in 1976, and later approved full production in 1982. After purchasing Hughes Helicopters in 1984, McDonnell Douglas continued AH-64 production and development. The helicopter was introduced to U.S. Army service in April 1986. The advanced AH-64D Apache Longbow was delivered to the Army in March 1997. Production has been continued by Boeing Defense, Space & Security, with over 2,400 AH-64s being produced by 2020.

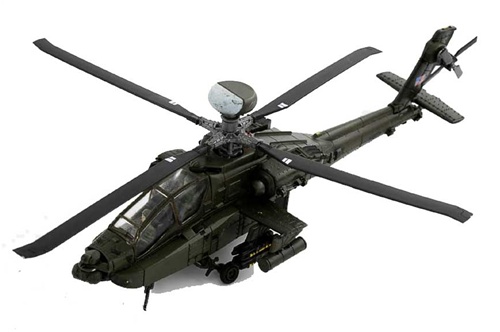

The U.S. Army is the primary operator of the AH-64. It has also become the primary attack helicopter of multiple nations, including Greece, Japan, Israel, the Netherlands, Singapore, and the United Arab Emirates. It has been built under license in the United Kingdom as the AgustaWestland Apache. American AH-64s have served in conflicts in Panama, the Persian Gulf, Kosovo, Afghanistan, and Iraq. Israel used the Apache in its military conflicts in Lebanon and the Gaza Strip. British and Dutch Apaches have seen deployments in wars in Afghanistan and Iraq. Pictured here is a 1:72 scale replica of a US Army AH-64D Apache Longbow attack helicopter that was flown during Operation Iraqi Freedom. Sold Out!

Dimensions:
Length: 8-3/4-inches
Rotor Span: 7-1/4-inches

Release Date: September 2008

Historical Account: "Desert Warfare" - Recent reports indicate that the helicopter is vulnerable to ground forces in certain environments, such as when operating in urban terrain. Since 2003, Iraqi ground troops and insurgents were able to damage propulsion and flight control systems with ground fire, sometimes forcing the helicopters to make immediate emergency landings or shooting them down. During Operation Iraqi Freedom, some Apaches were damaged in combat, including one captured by Iraqi troops near Karbala on March 24th, 2003, and shown on Iraqi television.

The captured helicopter was destroyed via airstrike the day after it was captured. The March 24th attack, against an armored brigade of the Iraqi Republican Guard's Medina Division, was largely unsuccessful, apparently because the tank crews had set up a "flak trap" in broken terrain, employing their HMGs to good effect. More recently two Apaches were lost along with their crews between January 28th and February 2nd, 2007 to Iraqi insurgent ground fire in Taji and Najaf.

There are various factors that contribute to this vulnerability. First, Apaches were designed to engage and destroy armor at safe ranges, where they could not be fired upon. Secondly, infantry are less easily detected than armor. In Iraq, the close quarters, and ample cover afforded by the urban environment make it easy for ground forces to attack at close ranges (50 - 850 m. This environment brought out the Apache's vulnerability to close range attacks from heavy caliber machine guns (0.5 inch). Also, since the Apache is only capable of firing at a single target at a time, it is vulnerable when attacked from several dispersed positions. Combat utility helicopters like the UH-60 Black Hawk may not suffer this disadvantage, as they have multiple manned side armaments, adding extra protection in certain tactical situations. However, the Apache has superior maneuverability, armament, and speed.

In either case, the Apache's use in both attack and support roles in urban environments has proven effective. Apaches have been successful working in support roles with ground troops, and as an observation platform for directing artillery. Despite the Apache's vulnerability in urban operations, it is currently rated as one of the most survivable of all military helicopters. The vast majority of Apache helicopters that have taken heavy combat damage have been able to continue their assigned missions and return safely to their bases. For example, of the 33 Apaches employed in the March 24th, 2003 attack, 30 were damaged by Iraqi ground fire with several being write-offs, but only one of these did not make it back to base (although in this case, the mission objective was apparently not achieved).
