No other aircraft of WWII could fly as high, go as far, or fight as hard as the famed Mustang. Piloted by a record 281 Aces, this agile and ferocious dogfighter tallied more kills than any other Allied airplane. As the bombers of the Eighth Air Force fought their way deep into Hitler's Germany, it was the Mustang that cleared the skies of Luftwaffe fighters. The powerful Rolls-Royce Merlin engine gave the Mustang a speed of 445 mph. Re-styled with an aerodynamic bubble canopy for greater visibility, and outfitted with 6 fast-firing .50 caliber machine guns, the P-51 became the best fighter of the war.

Following combat experience the P-51D series introduced a "teardrop", or "bubble", canopy to rectify problems with poor visibility to the rear of the aircraft. In America, new moulding techniques had been developed to form streamlined nose transparencies for bombers. North American designed a new streamlined plexiglass canopy for the P-51B which was later developed into the teardrop shaped bubble canopy. In late 1942, the tenth production P-51B-1-NA was removed from the assembly lines. From the windshield aft the fuselage was redesigned by cutting down the rear fuselage formers to the same height as those forward of the cockpit; the new shape faired in to the vertical tail unit. A new simpler style of windscreen, with an angled bullet-resistant windscreen mounted on two flat side pieces improved the forward view while the new canopy resulted in exceptional all-round visibility. Wind tunnel tests of a wooden model confirmed that the aerodynamics were sound.

The new model Mustang also had a redesigned wing; alterations to the undercarriage up-locks and inner-door retracting mechanisms meant that there was an additional fillet added forward of each of the wheel bays, increasing the wing area and creating a distinctive "kink" at the wing root's leading edges.

Other alterations to the wings included new navigation lights, mounted on the wingtips, rather than the smaller lights above and below the wings of the earlier Mustangs, and retractable landing lights which were mounted at the back of the wheel wells; these replaced the lights which had been formerly mounted in the wing leading edges.

The engine was the Packard V-1650-7, a licence-built version of the Rolls-Royce Merlin 60 series, fitted with a two-stage, two-speed supercharger.

The armament was increased with the addition of two more .50 in (12.7 mm) AN/M2 "light-barrel" M2 Browning machine guns, the standard heavy-calibre machine gun used throughout the American air services of World War II, bringing the total to six. The inner pair of machine guns had 400 rounds per gun, and the others had 270 rpg, for a total of 1,880. The B/C subtypes' M2 guns were mounted with an inboard axial tilt, this angled mounting had caused problems with the ammunition feed and with spent casings and links failing to clear the gun-chutes, leading to frequent complaints that the guns jammed during combat maneuvers. The D/K's six M2s were mounted upright, remedying the jamming problems. In addition, the weapons were installed along the line of the wing's dihedral, rather than parallel to the ground line as in the earlier Mustangs.

The wing racks fitted to the P-51D/P-51K series were strengthened and were able to carry up to 1,000 lb (450 kg) of ordnance, although 500 lb (230 kg) bombs were the recommended maximum load. Later models had removable under-wing 'Zero Rail' rocket pylons added to carry up to ten T64 5.0 in (127 mm) H.V.A.R rockets per plane. The gunsight was changed from the N-3B to the N-9 before the introduction in September 1944 of the K-14 or K-14A gyro-computing sight. Apart from these changes, the P-51D and K series retained V-1650-7 engine used in the majority of the P-51B/C series.

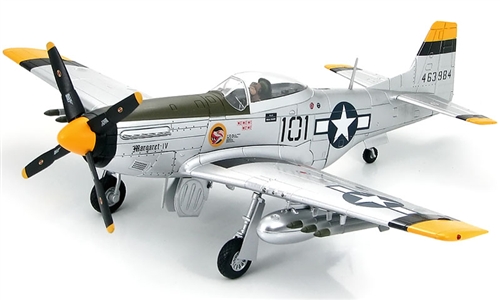

Pictured here is a 1:48 scale replica of a North American P-51D Mustang fighter that was nicknamed 'Margaret IV', and attached to the 78tgh Fighter Squadron "Bushmasters", 15th Fighter Group, then deployed to Iwo Jima during April 1945. Sold Out!

Dimensions:
Wingspan: 8-1/2-inches
Length: 7-1/2-inches

Release Date: August 2010

Historical Account: "Escort Duty" - In January 1945, ordered into combat, the 15th Fighter Group left Hawaii for Saipan in the Marianas Islands, remaining there until a landing strip could be secured by the Marines on Iwo Jima. The first fighter aircraft to arrive at lwo Jima were P-51s of the 15th's 47th Fighter Squadron the morning of March 6th, with the 45th and 78th Squadrons following the next day. They supported Marine ground units by bombing and strafing cave entrances, trenches, troop concentrations, and storage areas. By the middle of March, the group also began strikes against enemy airfields, shipping, and military installations in the Bonin Islands.

On April 7th, 1945, the 15th flew its first VLR mission to Japan, providing fighter escort for the Boeing B-29 Superfortress bombers that attacked the Nakajima aircraft plant near Tokyo, and was awarded the Distinguished Unit Citation. In late April and early May that year, the 15th struck Japanese airfields on Kyushu to curtail the enemy's suicide attacks against the invasion force on Okinawa and also hit enemy troop trains, small factories, gun positions, and hangars in the Bonins and Japan.

During the summer of 1945, the 15th Fighter Group (along with the 21st from the VII Fighter Command) was reassigned to the Twentieth Air Force 301st Fighter Wing. The group continued its fighter sweeps against Japanese airfields and other targets, in addition to flying long-range B-29 Superfortress escort missions to Japanese cities, until the end of the war. After the war, the group remained on lwo Jima until November 25th, 1945, when it transferred (without personnel and equipment) to Bellows Field, Hawaii. There it absorbed the personnel and equipment of the 508th Fighter Group.
